Wastewater: the benefits of progressive cavity pumps
Aaron Renick looks at the benefits of a new progressive cavity pump which features a cone-shaped rotor and stator that can be easily adjusted to maintain optimal performance, extending component lifespan up to four times longer and significantly reducing maintenance needs and power consumption

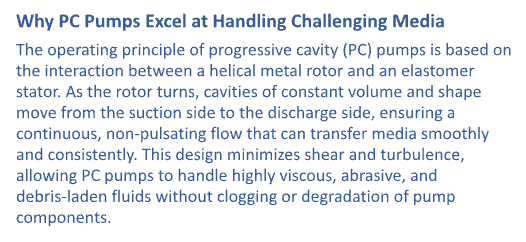

Traditionally, progressive cavity (PC) pumps have been regarded as the best solution for the most demanding fluid pumping challenges. They excel at handling highly viscous, abrasive, and debris-laden media, making them particularly effective in wastewater treatment facilities.
Despite these advantages, conventional PC pumps have gained a reputation for difficult and frequent maintenance, high lifecycle costs, and inefficient power consumption. Consequently, industry professionals sometimes opt for alternative solutions, even if it means sacrificing performance.
However, it’s time to rethink this perspective. Revolutionary advancements in the design of progressive cavity pumps have successfully addressed the problems associated with traditional PC pumps. These advancements have led to a significantly extended service life of wear parts – many times longer – while radically simplifying operations and maintenance.
Now, professionals can leverage all the benefits that make progressive cavity pumps ideal for demanding applications – without the traditional drawbacks. These innovations have established PC pumps as the preferred choice for engineers and operators who prioritise reliability, efficiency, cost-effectiveness, and ease of maintenance in the toughest wastewater fluid handling applications.
Let’s explore the common complaints about conventional progressive cavity pumps and how design improvements have successfully mitigated these issues.
The short lifespan of wear parts is a significant issue for conventional progressive cavity pumps. The operating principle relies on continuous contact and compression between the rotor and stator. Abrasive media contributes to component wear, necessitating frequent, costly and difficult replacements. Some manufacturers attempt to mitigate excessive wear by utilising exotic and expensive materials of construction or increasing the number of pressure stages, but this approach significantly increases the footprint of the pump as well as the price.
The stator and rotor can account for over 50% of a pump’s original price. Maximising their lifespan is crucial for a good return on investment and reducing the Total Cost of Ownership (TCO) and for maximising performance and availability.
In conventional progressive cavity pumps, wear and tear inevitably create gaps between the rotor and stator, leading to a decrease in capacity. This typically results in a sudden and significant drop in pump performance, necessitating the replacement of the stator, and often, the rotor as well.
The design of the Vogelsang HiCone has effectively solved the problem. Instead of replacing the rotor and stator after the erosion of the contact surfaces, Vogelsang HiCone allows operators to advance the cone-shaped rotor into the mated cone-shaped stator.
Regaining original pump performance can now be achieved with just a few turns of an adjustment nut using a standard wrench or through an automated system.
This adjustment provides renewed compression of the stator elastomer against the rotor, without changing the shape of the cavity. The resulting benefit is that the same flows and pressures are achieved equivalent to when the pump was new.
Past attempts to design an adjusting system required holding the stator elastomer in place with a temporary clamshell or metallic ‘slats’. These multi-component designs pose risks, such as rupture and leakage.
The escaping of pumped liquids can allow exposure to biohazards or dangerous chemicals. Furthermore, these old methods of compression adjustment were tedious to perform and tended to deform the cavities of the pump, leading to poor performance and unpredictable wear.
The conical design eliminates the need for frequent, costly, and difficult part replacements and the associated downtime. The HiCone adjustment system can be fine-tuned to operating conditions like pressure and temperature, maximising performance and prolonging service life many times over.
Compression between the rotor and stator can be regulated from the control room through the entire service life, allowing for predictive maintenance and planning. An integrated wear scale also indicates the current condition of the pump.
Compounding the problem of frequent and costly replacement of rotors and stators in traditional progressive cavity pumps is the difficulty of performing this procedure, an extremely time-consuming and labour-intensive process.
Service teams cite the cumbersome process of disassembling the discharge piping, which often takes longer than the component replacement itself. Additionally, substantial space is required for stator removal, and disassembly of the universal joint can be complicated, leading to incorrect reassembly and premature failure.
Vogelsang’s QuickService concept addresses these issues in its progressive cavity pumps by allowing rotor and stator replacement without dismantling the outlet or inlet pipeline. Removal of the rotor and stator is achieved without unbolting the piping, in three easy steps:
1. Unbolt the inclined flange and intermediate flange
2. Lift upward and unthread the nut, located on the tie rod, separating the rotor from the drivetrain.
3. Remove the rotor and stator without unbolting the piping.
With conventional PC pumps, frustration extends to other components.
Universal Joint. The universal joint in traditional progressive cavity (PC) pumps has long been a significant challenge. Replacing a rotor or mechanical seal often requires disassembling one or both joints, which can be cumbersome.
Manufacturers traditionally provided two suboptimal options, forcing buyers to choose between strength or economy.
Gear joints, also known as crown gear joints, are designed for durability but come with a downside. They are complex, consisting of many parts, and are costly due to their reliance on outdated technology.
Pin-style joints are crafted for cost-efficiency. They are generally less expensive and simpler. However, these joints are specifically built to the pump model’s rating, leaving little margin for error and resulting in frequent failures.
Fortunately, state-of-the-art progressive cavity pumps utilise a superior alternative that requires no compromises: the Cardan joint. Widely used and proven in demanding applications such as car and truck drive shafts and industrial machinery, the Cardan joint is a robust technology that resists multiaxial forces and lasts the entire lifespan of the pump.
Mechanical Seals. Another common complaint about progressive cavity pumps are the mechanical seals. They often fail prematurely on conventional PC pumps and are quite challenging to replace. Most PC pumps in service today are equipped with inexpensive, single-component mechanical seals, which typically lack lubrication on the non-product side.
This design exposes the pumped liquid to the atmosphere, which can be problematic when dealing with sticky liquids or those that harden upon contact with air. Mechanical seals are designed to ‘weep’, but this can lead to erosion from abrasive particles passing between the faces, and hazardous fluids may escape through this pathway. Moreover, the absence of lubrication during a run-dry condition frequently causes premature failure.
State-of-the-art progressive cavity pumps, like the Vogelsang HiCone, protect the mechanical seals from these vulnerabilities by having a liquid barrier on the non-product side of the seal faces that can be pressurised. Moreover, the HiCone pump is designed to streamline the process of replacing the seal. A new, pre-assembled mechanical seal can be installed without disassembling the entire pump.
Conventional progressive cavity pumps require significant horsepower for the torque needed to start the pump. Not only does this consume more electricity, but it also increases the pump’s purchase cost, and the extensive power infrastructure required, including the motor, VFD, and electrical components, to supply sufficient power.
The conical geometry of the rotor and stator in the HiCone series, coupled with automated axial readjustment, offers multiple benefits. Apart from significantly extending the lifespan of the rotor and stator, it also results in substantial savings from lower power consumption and smaller system sizing – requiring much less horsepower to start the pump.
Whenever the operator stops the pump, HiCone pumps equipped with automated controls record the precise operating position of the rotor and then retract it. Upon restarting, the rotor begins to rotate with minimal clamping before moving the rotor back to the original operating position. As a result, the intelligent startup process requires much less horsepower than other progressive cavity pumps need for starting torque.
To overcome pressure in the discharge piping and prevent slip, progressive cavity pumps depend on a tight fit between the metal rotor and the elastomer stator. The rotor’s outer diameter is intentionally slightly larger than the stator’s inner diameter, causing compression of the stator.
Consequently, PC pumps are inherently susceptible to severe damage if run dry. This can occur if tanks empty, pipes clog, or supply line valves are accidentally closed. In addition, if packing glands or single mechanical seals are installed, they will fail due to lack of lubrication.
Metal rubbing against a compressed elastomer generates heat from friction, like a windshield wiper on a dry windshield. This causes the elastomer to harden and burn, leading to pump failure.
Recent designs now incorporate advanced monitoring systems with temperature probes to detect dry running conditions. Proper placement of these probes is crucial; if placed too far from the stator surface, they won’t detect heat effectively, but if they penetrate the elastomer, they risk failure due to contact with the rotating stator becoming a potential source of media leakage.
With the game-changing new cone shaped rotor and stator geometry, the wastewater industry can confidently benefit from all the advantages of conventional progressing cavity pumps and eliminate their disadvantages. Simple manual or automatic adjustments now obviate the need for frequent, time-consuming and difficult disassembly and replacement of expensive parts. The easy adjustment and readjustment system compensates for the effects of wear and minimised clamping between the conveying elements. The result is a service life many times longer, dramatically reduced maintenance, higher availability and lower power consumption.
Aaron Renick is Vice President of Sales, Vogelsang USA.
