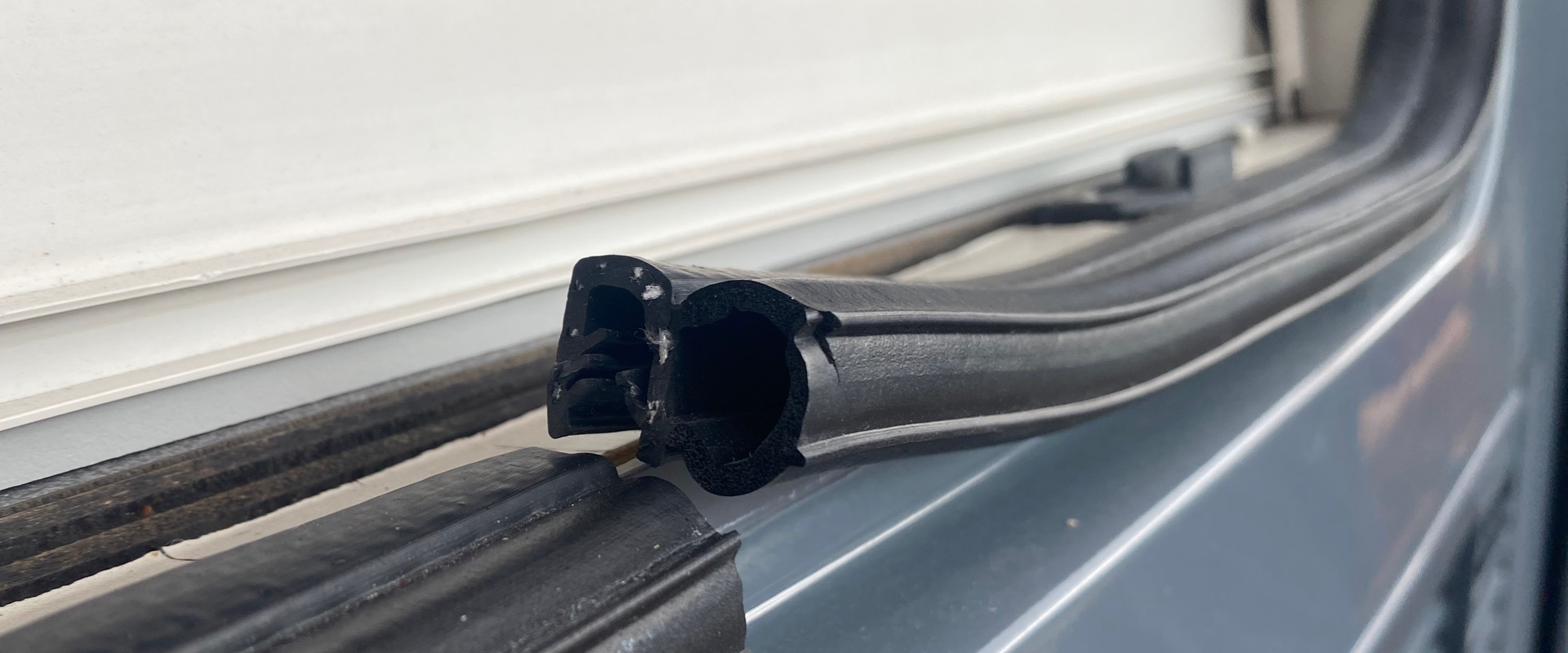

The Manufacturing Process of Rubber Edge Trims
Rubber edge trims can be used for various applications within the automotive, construction and industrial sector. They serve as protective barriers that protect sharp edges and joints on panels. The process to manufacture rubber edge trims involves a process known as extrusion which often incorporates a metal reinforced spine for added durability and strength. This article by Seals Direct explores this manufacturing process.
The extrusion process begins with the preparation of the rubber compound. This is an important step that determines the final products quality and performance. The compound typically consists of natural or synthetic rubber mixed with various additives, such as fillers, plasticisers and stabilisers. These additives enhance the rubbers properties to make it suitable for specific applications. The rubber compound is then fed into an extruder which is a machine equipped with a heated barrel and a screw mechanism that forces the material through a shaped die.
As the rubber compound is pushed through the die, it takes on the desired cross-sectional profile of the edge trim. The die is designed to produce specific shapes, such as U-channels, L-sections or bulb seals, depending on the applications requirements. The extruded rubber emerges from the die in a continuous length maintaining the exact shape dictated by the die. This continuous extrusion is then cooled, typically through a water bath or air cooling system, to solidify and stabilise the material.
Incorporating a metal reinforced spine into the rubber edge trim is an important step for applications that require additional rigidity and support. This reinforcement is usually achieved by embedding a metal strip or wire within the rubber during the extrusion process. The metal spine can be made of various materials, such as steel, aluminium or stainless steel, depending on the required properties like corrosion resistance or flexibility.
The integration of this metal spine is a delicate process. The metal strip or wire is fed into the extruder simultaneously with the rubber compound. This ensures that the metal is centrally located and firmly embedded within the rubber profile. These extrusion machines are equipped with specialised feeding mechanisms and control systems to maintain the correct alignment and tension of the metal reinforcement to prevent any misalignment or displacement during production.
Once the extrusion and reinforcement steps are complete, the rubber edge trims undergo further processing to achieve the final product specifications. This may include cutting the extruded length into specified sizes, splicing or joining sections for continuous applications. It can also involve applying surface treatments for enhanced durability or aesthetic appeal. Quality control measures, such as dimensional inspections, tensile strength tests and visual inspections are then completed to ensure that each section meets the required standards and performs effectively in its intended application.
As a rubber seal manufacturer, we also consider environmental factors and regulatory compliance during the production of our rubber edge trims. This includes adhering to industry standards and implementing sustainable practices in the production process. Continuous innovation and technological advancements in extrusion machinery and materials science contribute to the development of high-performance rubber edge trims that meet evolving industry demands.
The manufacturing of rubber edge trims is a complex and highly specialised process that involves the precise extrusion of rubber compounds and the integration of metal reinforcements. This combination of materials and techniques results in durable, flexible, and versatile products used across various industries. As technology advances, the production methods continue to evolve, offering improved performance and expanded application possibilities for rubber edge trims.
